Filmote: Restoration of an '88 Freestyle Hotfoot

One of my favourite restorations was that of my '85 Hotfoot Freestyle. A lot of things excite me about that bike - its relative scarcity, the quality of the paint finish, and the nice NOS parts that provide a flawless finish - so much so that the bike sits upstairs in my house whereas the other bikes are relegated to the garage.

So when this '88 Freestyle came up I thought why not do it again? Sure the '88 is not as rare as the '85 but it still is relatively rare. Like the '85, this bike steals its design cues from a lot of bikes made at a similar time by more expensive manufacturers. The frame looks suspiciously like a GT Performer ..


Before we Start

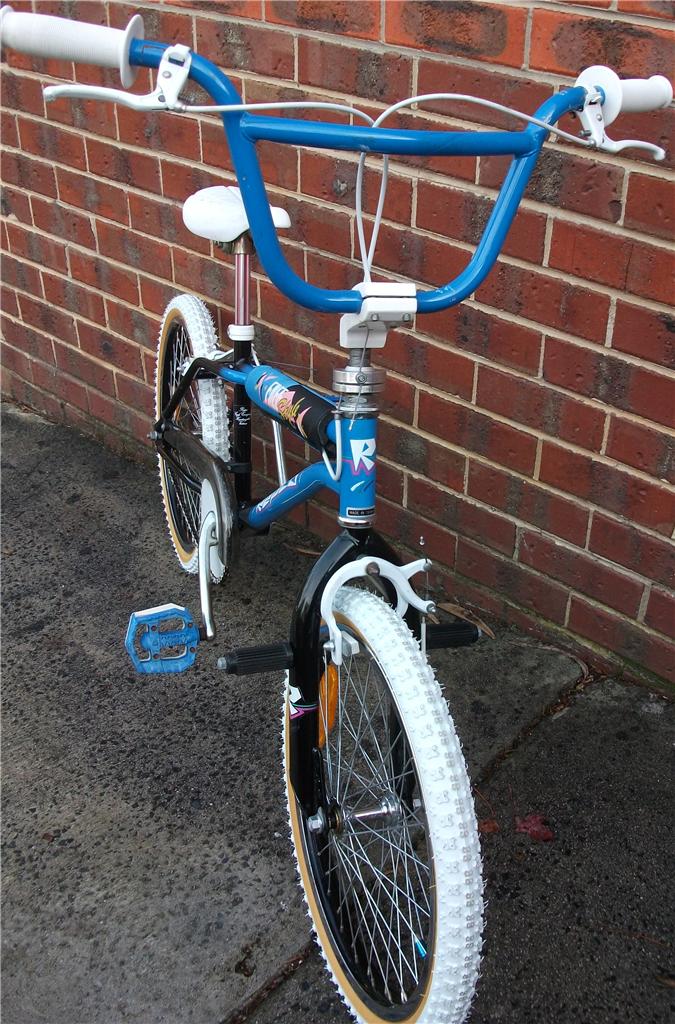

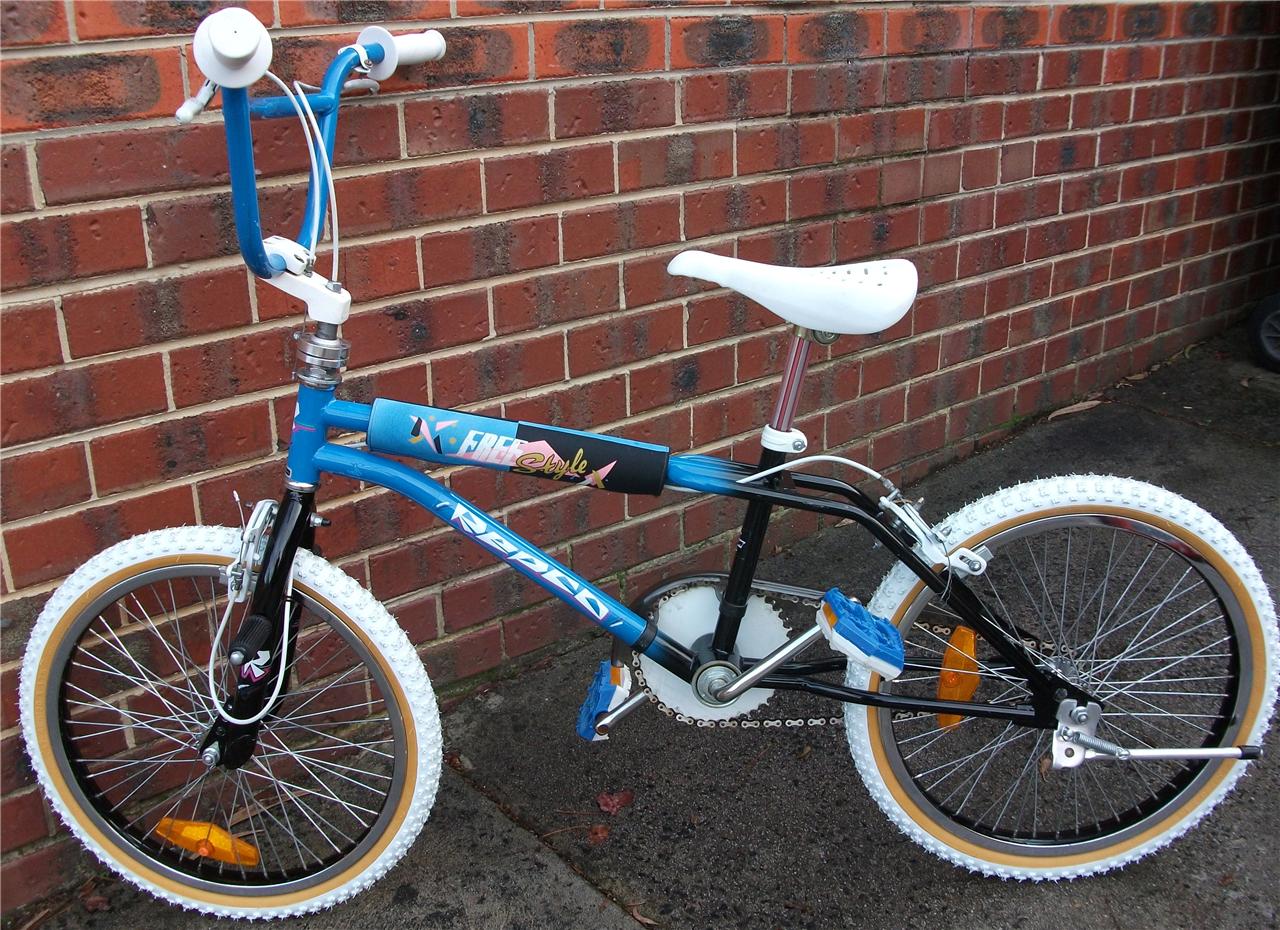

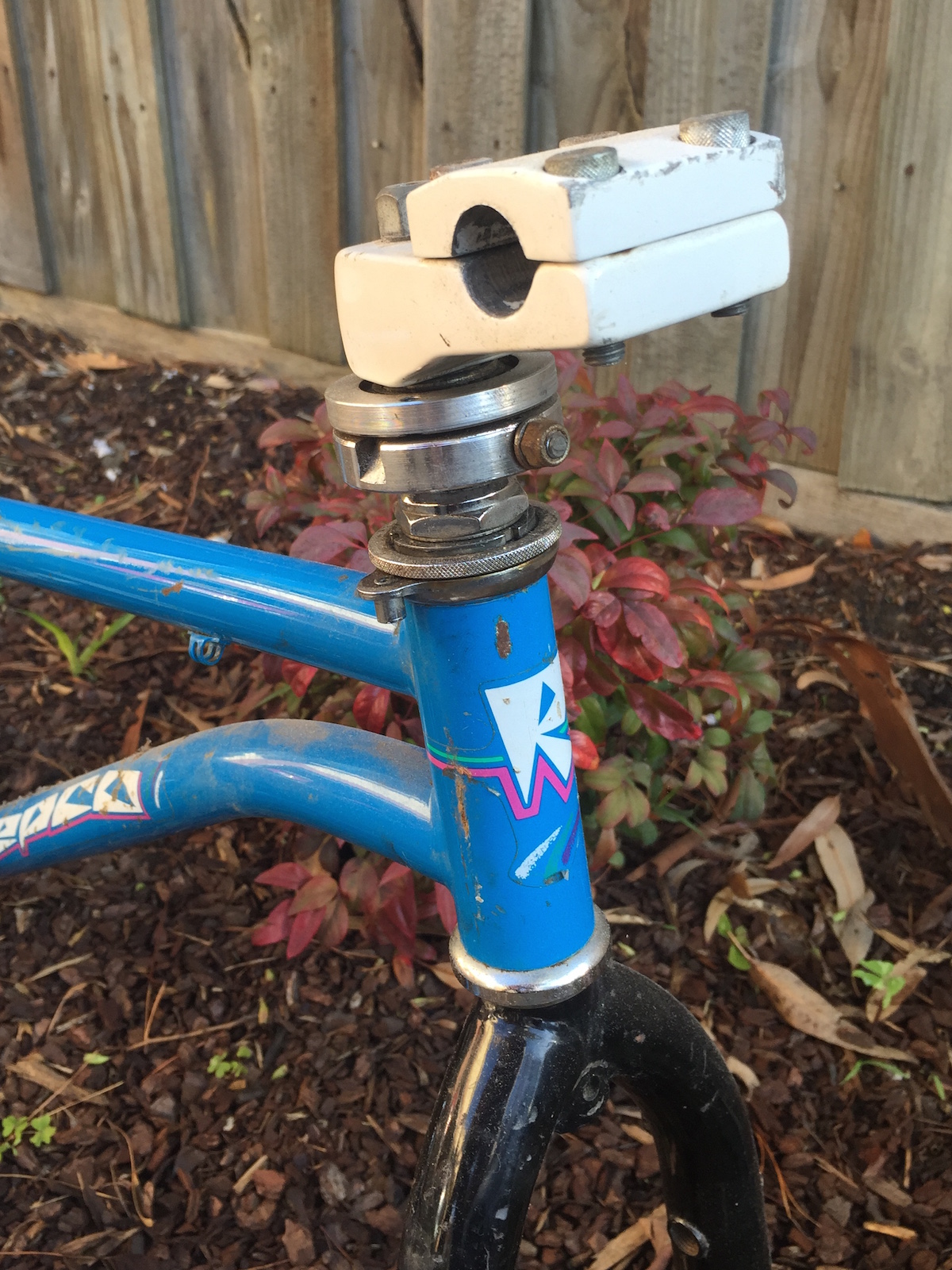

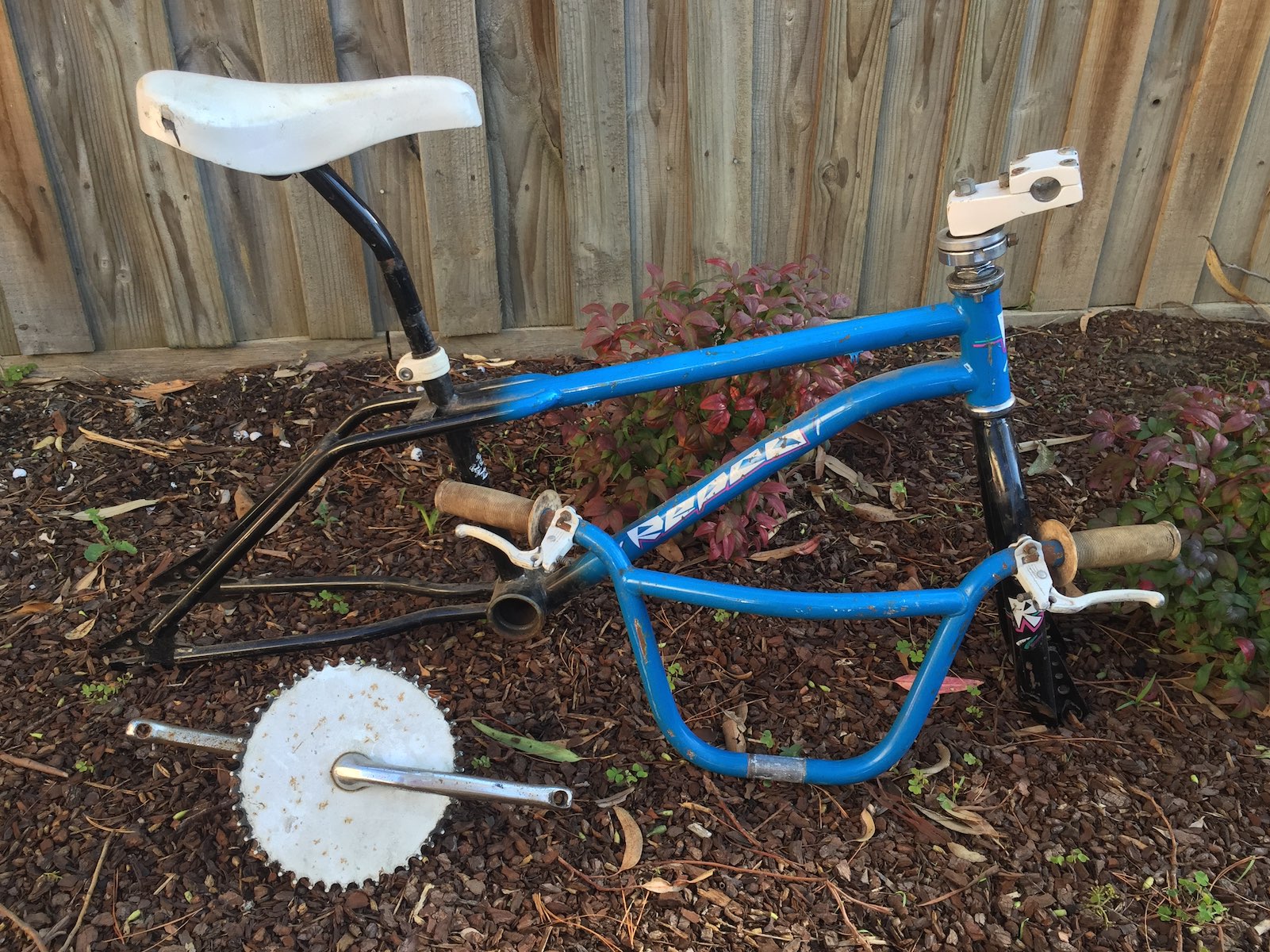

The top two pictures show the frame, fork and bars as I got them from Mr.Hotfoot. Not in the picture are the brakes, fork pegs and pedals that complete the bike. My plans for this bike are to restore it to original however this presents some problems - where to get original pedals and artwork for the pads. The second pair of photos are Supra's clean and original version that I am basing my restoration on.




Δ Top

Restoring the Hubs
The bike originally came with a pair of steel black, shiny-sided 48 hole rims laced to an equally shitty pair of steel hubs. I was originally going to restore these but a quick look at the rims showed they were beyond repair as they had some serious rust and some minor (but maybe repairable) hops.

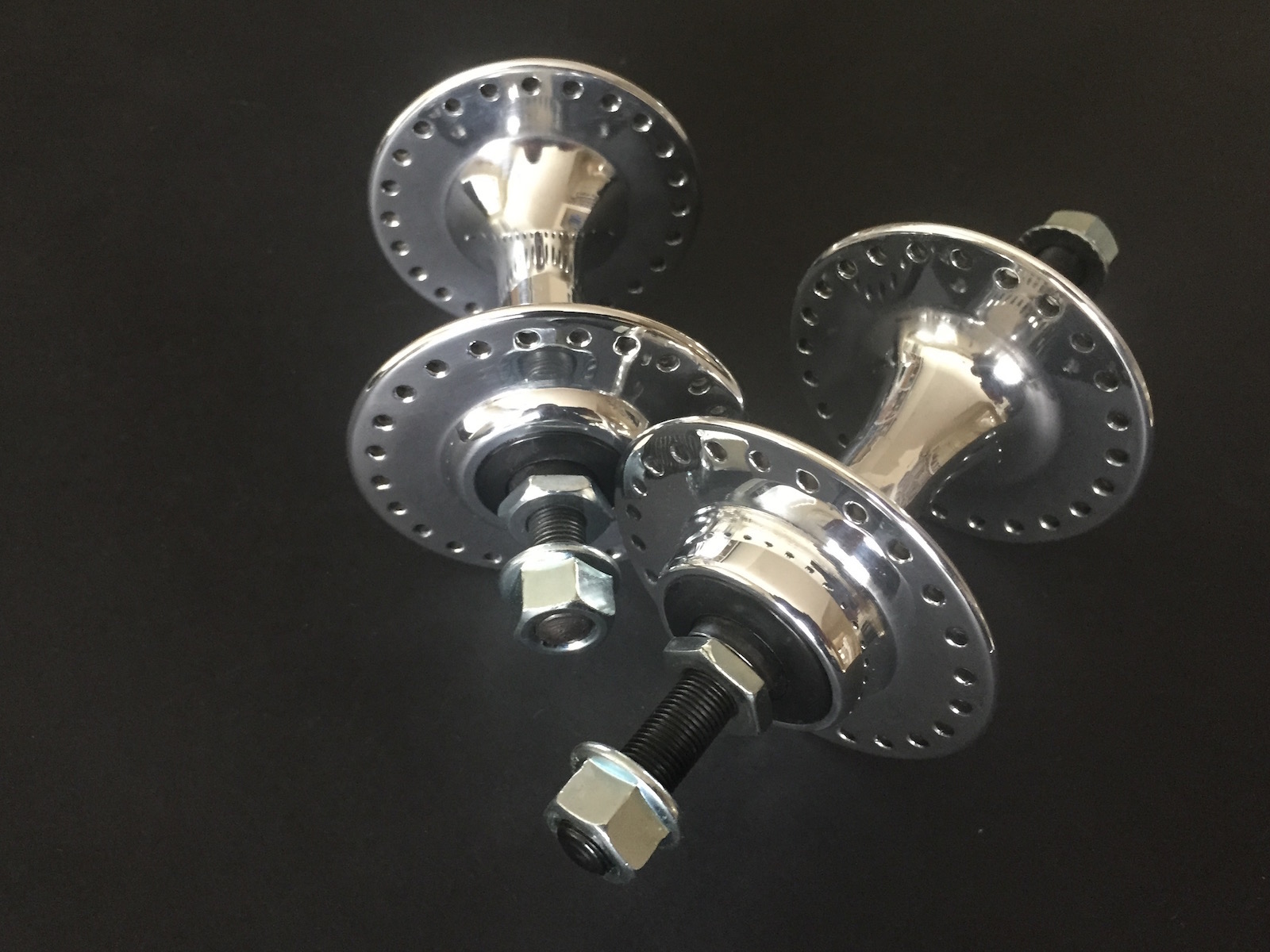

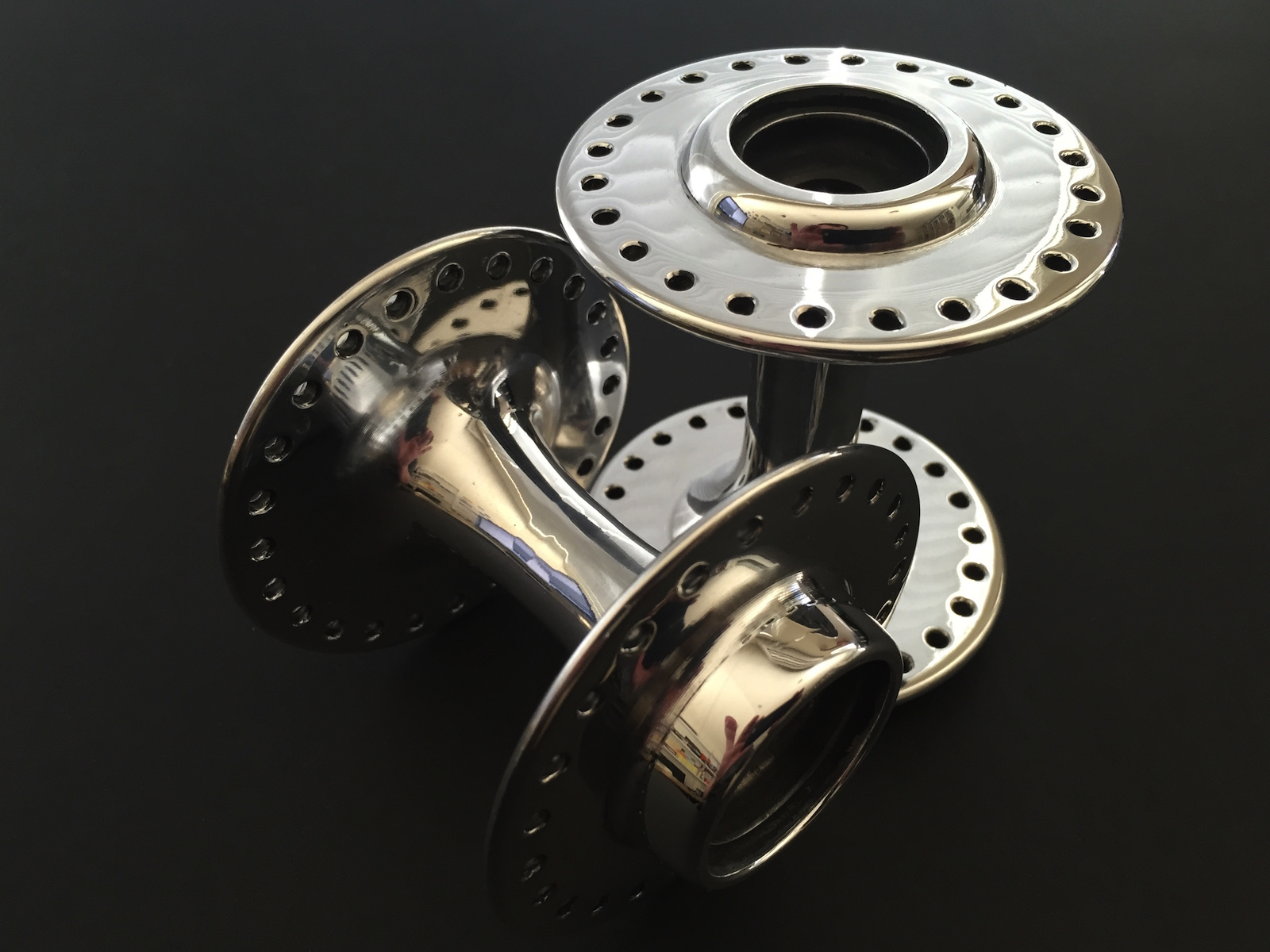

A replacement set of wheels came from Mr.Hotfoot - these are 48H Araya 7X copies with Keysin hubs all in nice condition with minimal curb rash and hops in the rims. Not particularly high-end wheels but fitting with the original parts of the bike. The bonus with these is that they are alloy and can therefore be polished. And polish I did!

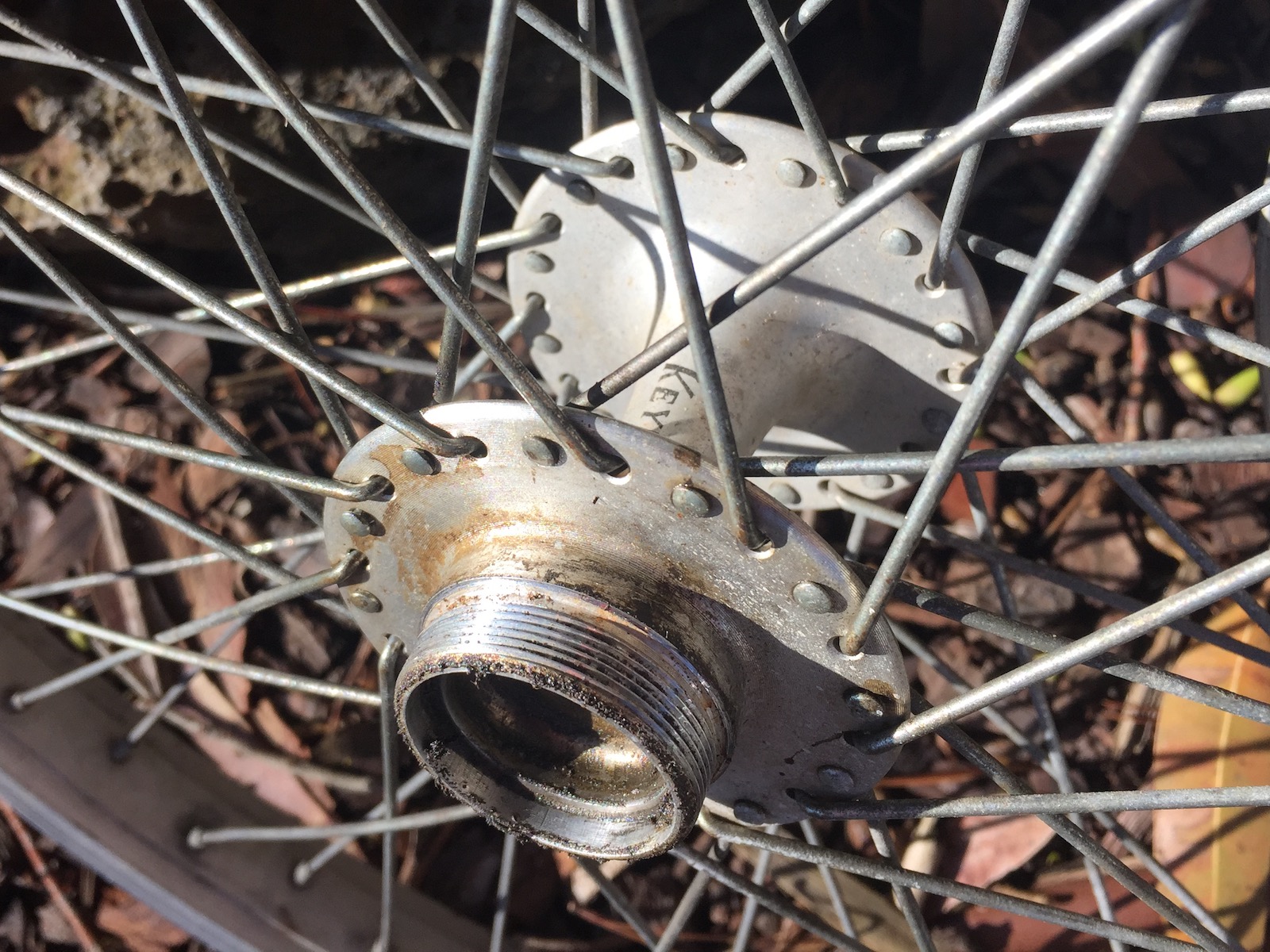

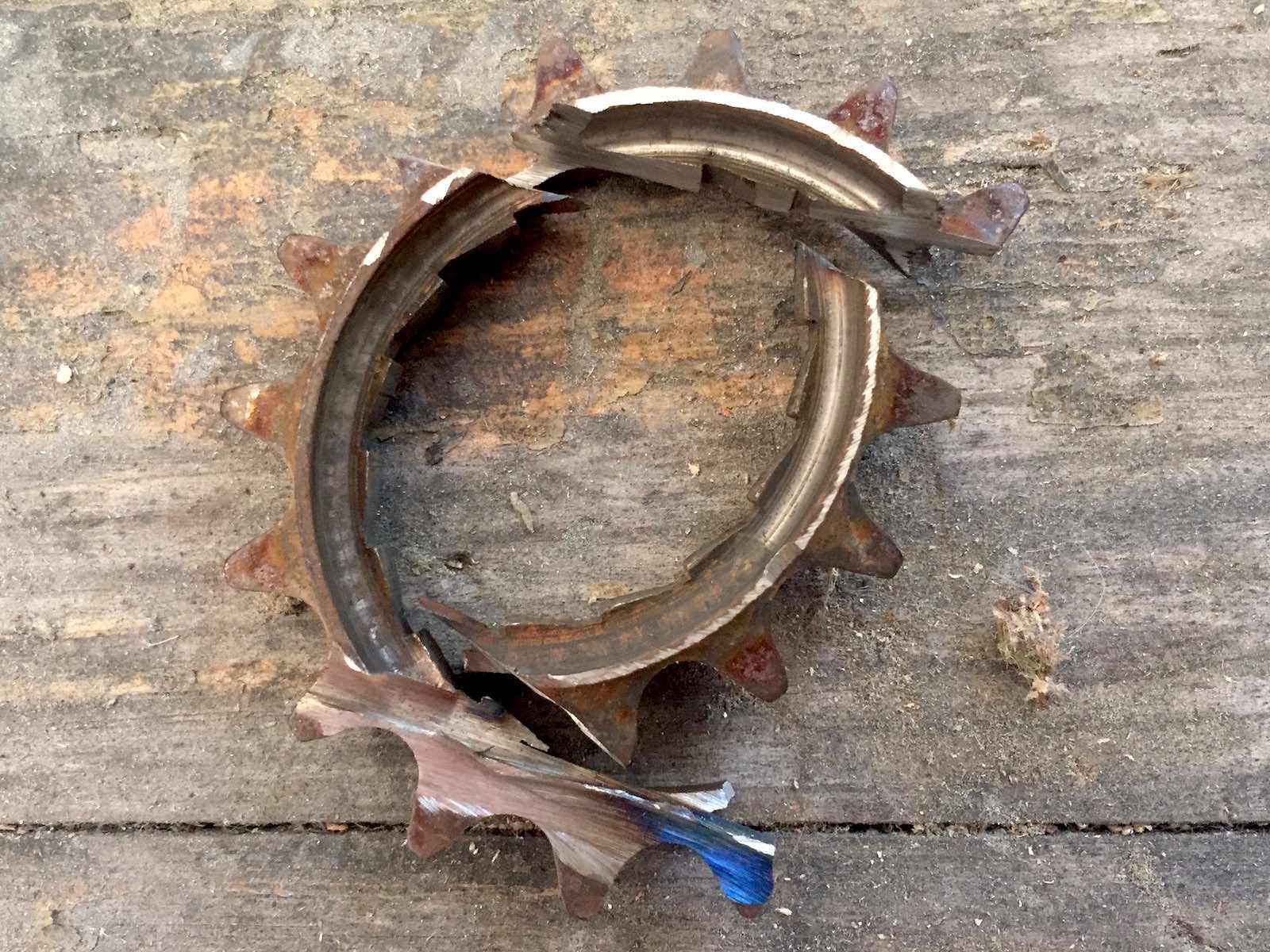

But before I could start I had to remove the old freewheel. My freewheel removing tool assumes that the freewheel itself has 4 rebates on the outer rim whereas the one fitted to this wheel had two. I tried at first to tap the freewheel free with a cold-chisel but to no avail. I then cut two more rebates to see if I could get my tool to fit however, this freewheel was on for good and no amount of torque with the tool would work. Finally in desperation, I cut the edges of the side of the freewheel allowing me to be able to grab the edges within a vice without crushing the alloy hub itself. Some WD-40, some swearing and some brute force and I heard a satisfying Crack! and it was free.




Δ Top

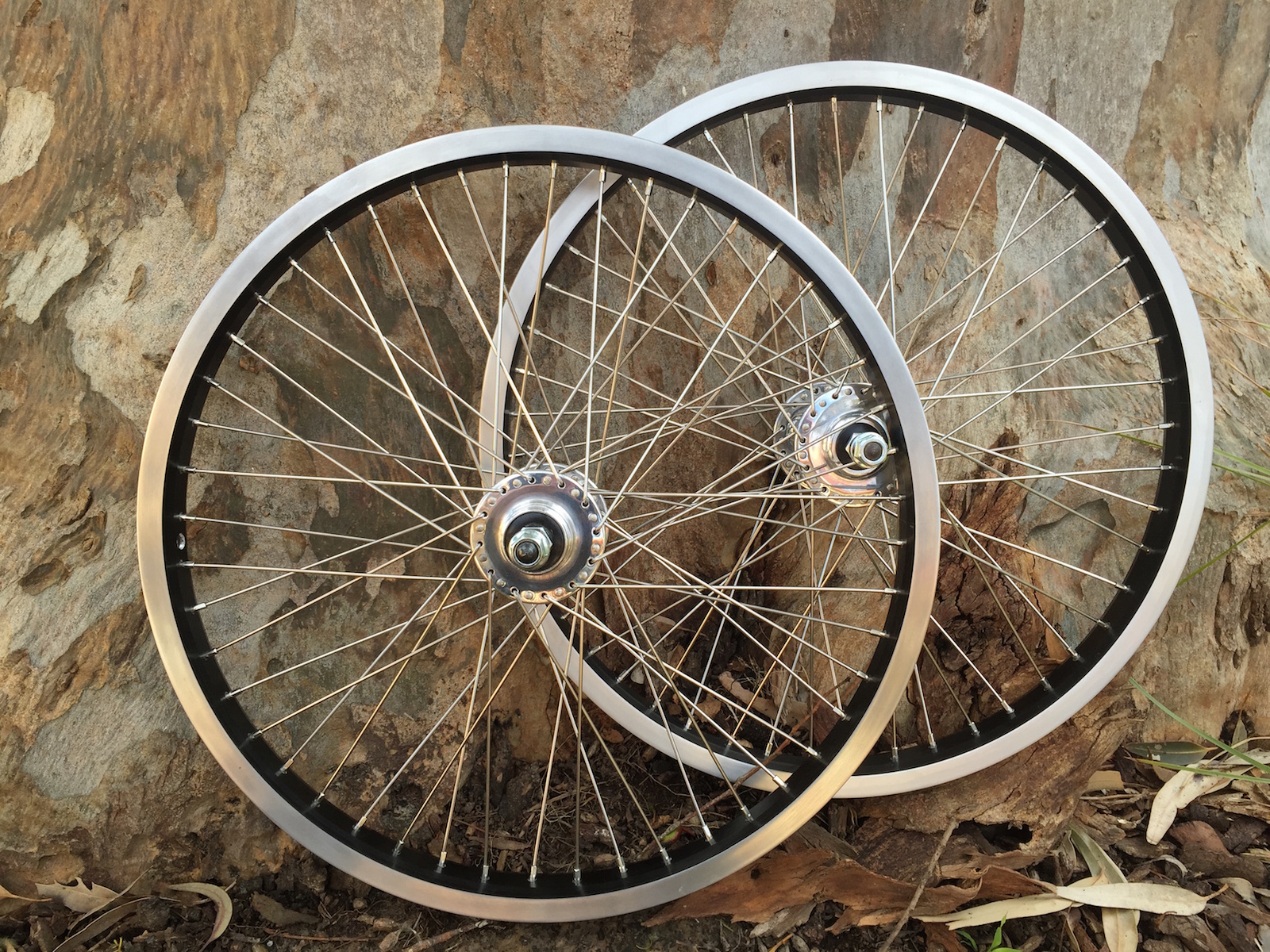

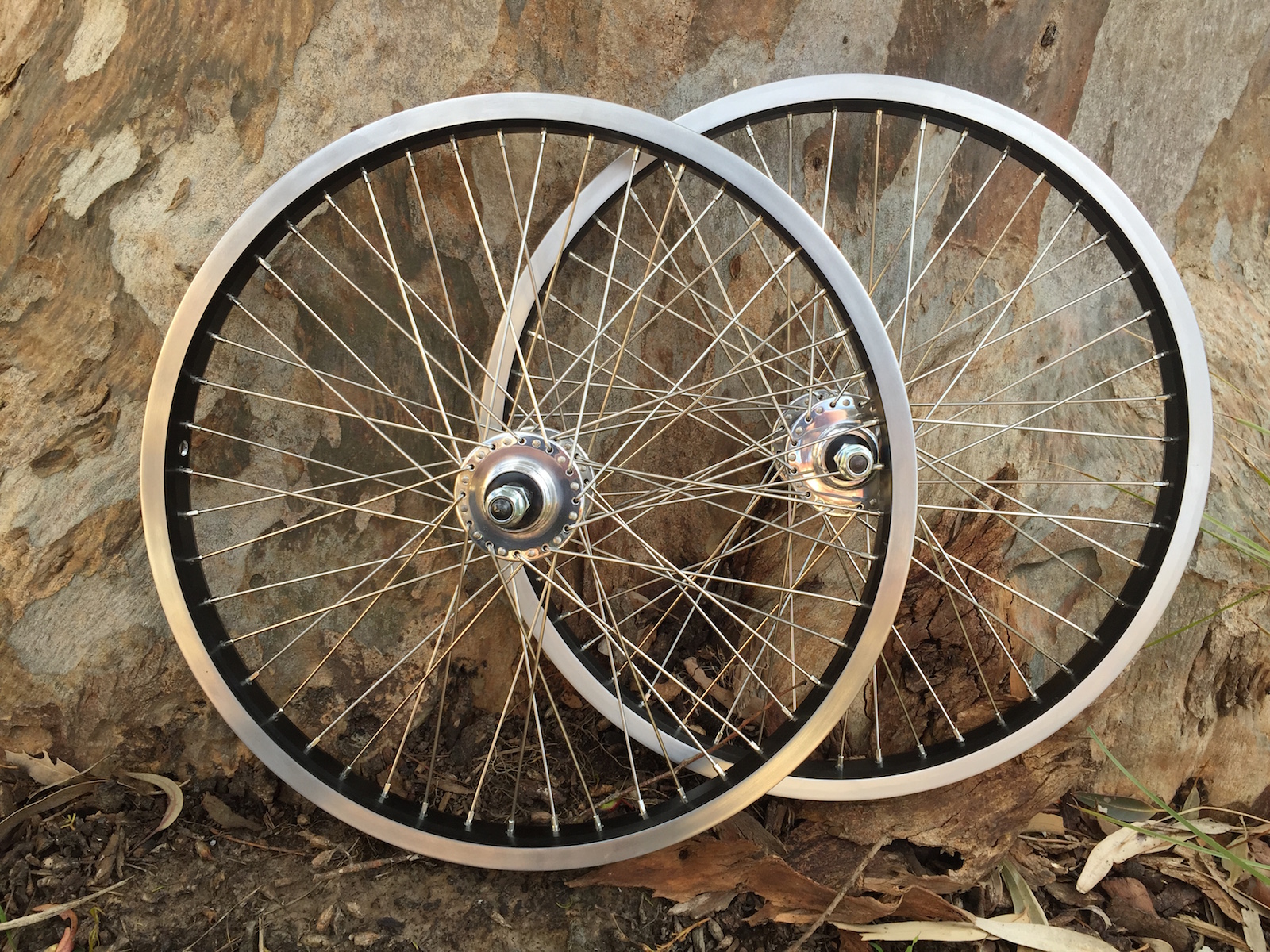

Building the Wheels

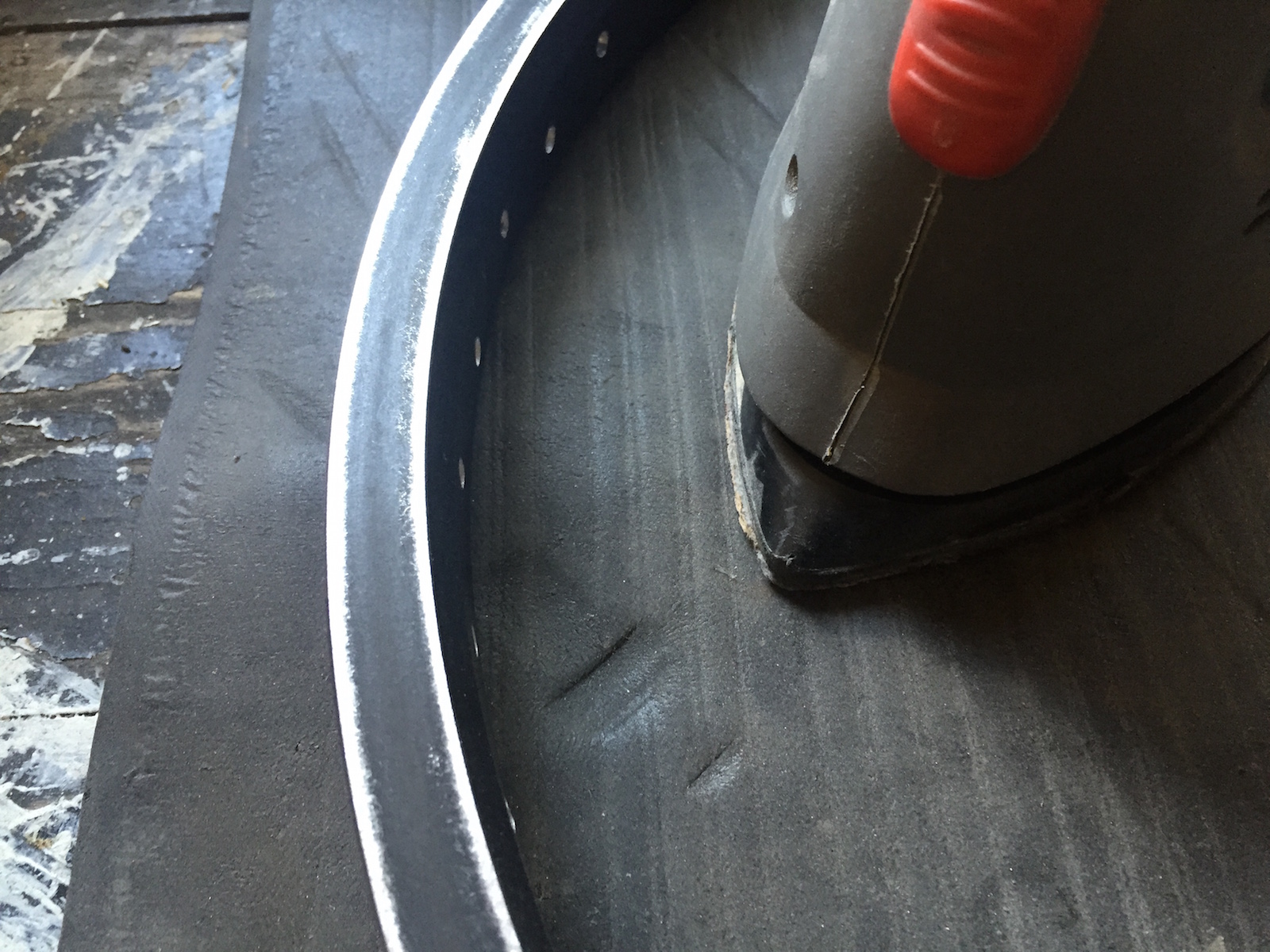

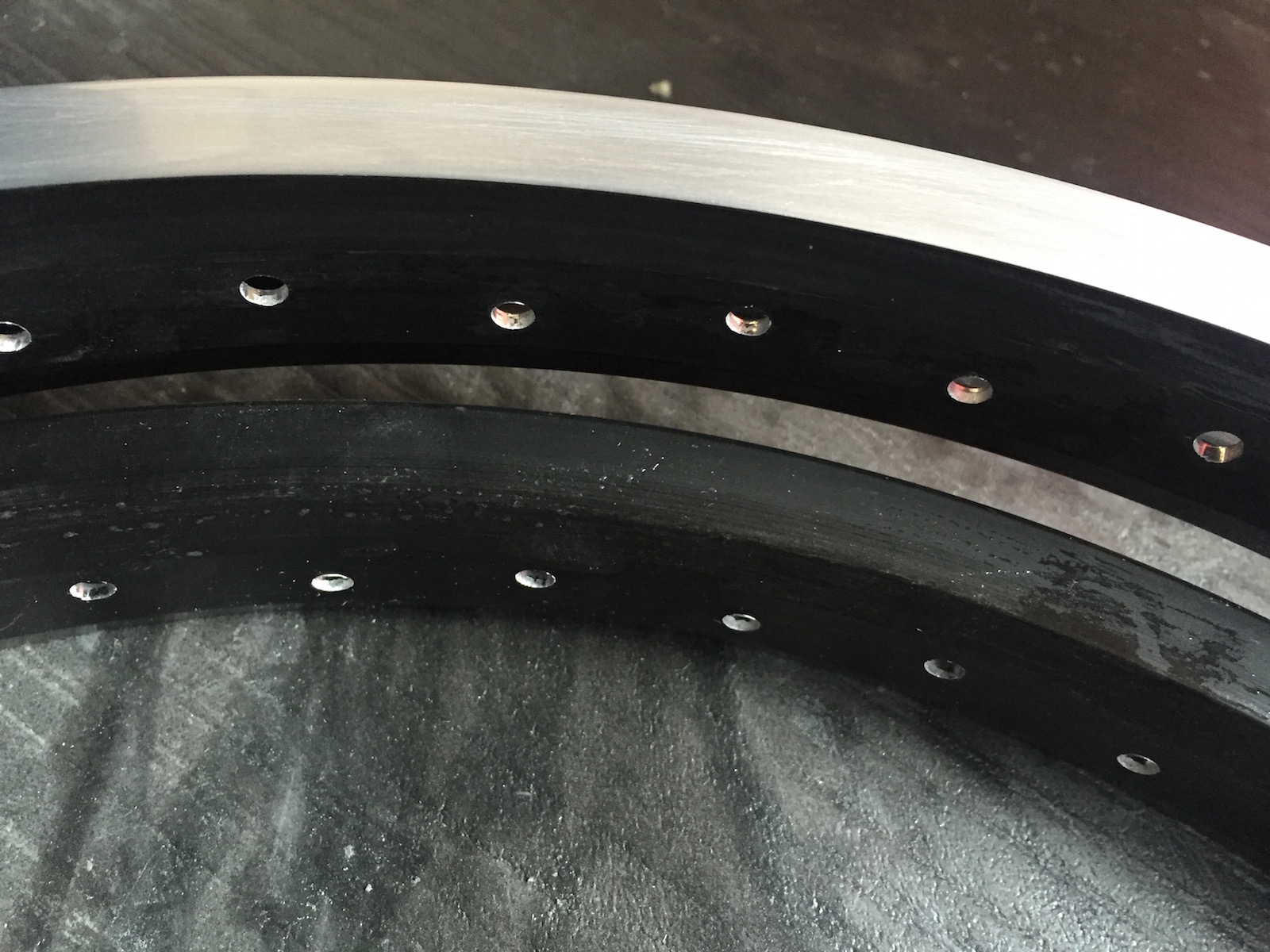

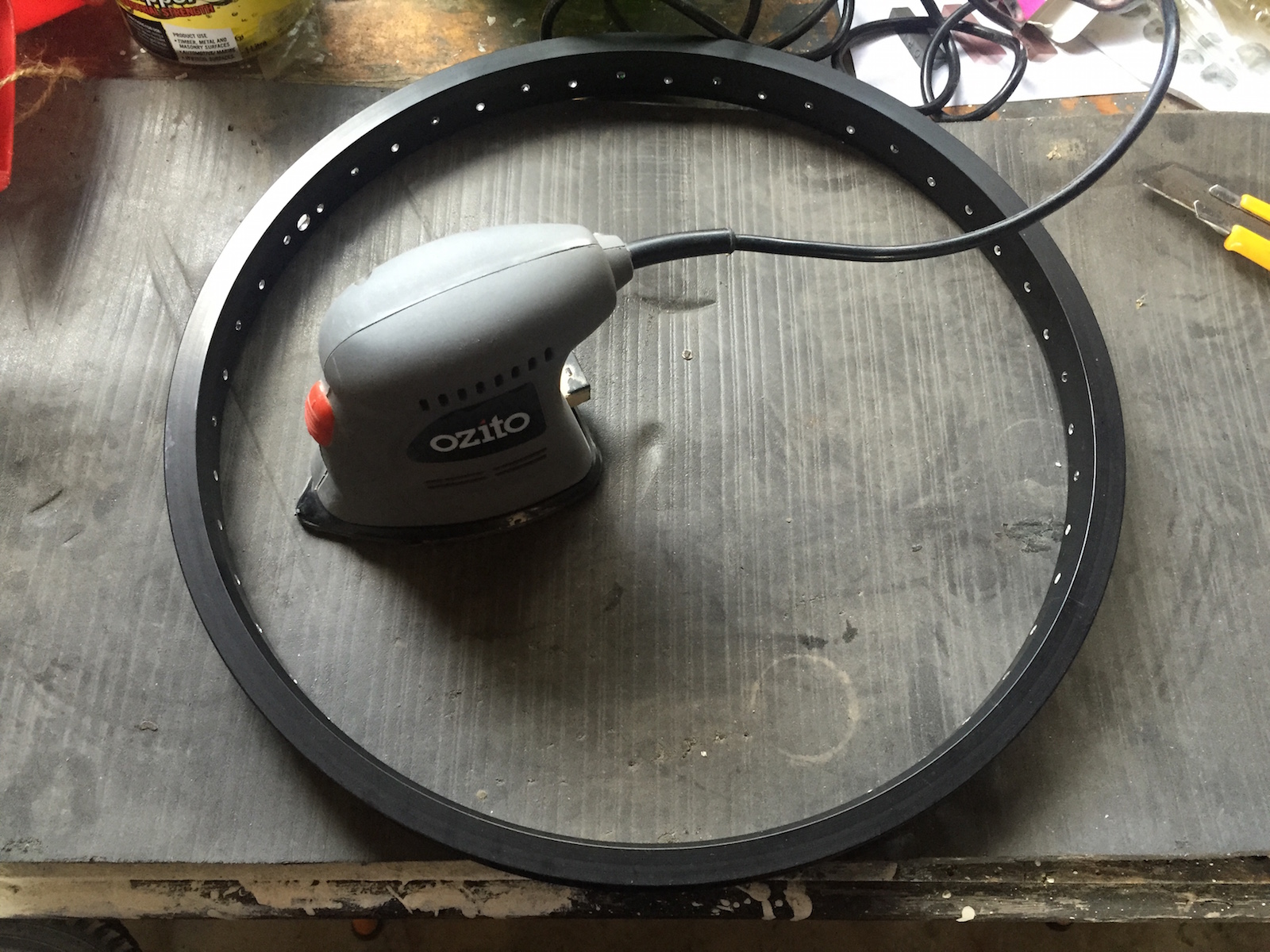

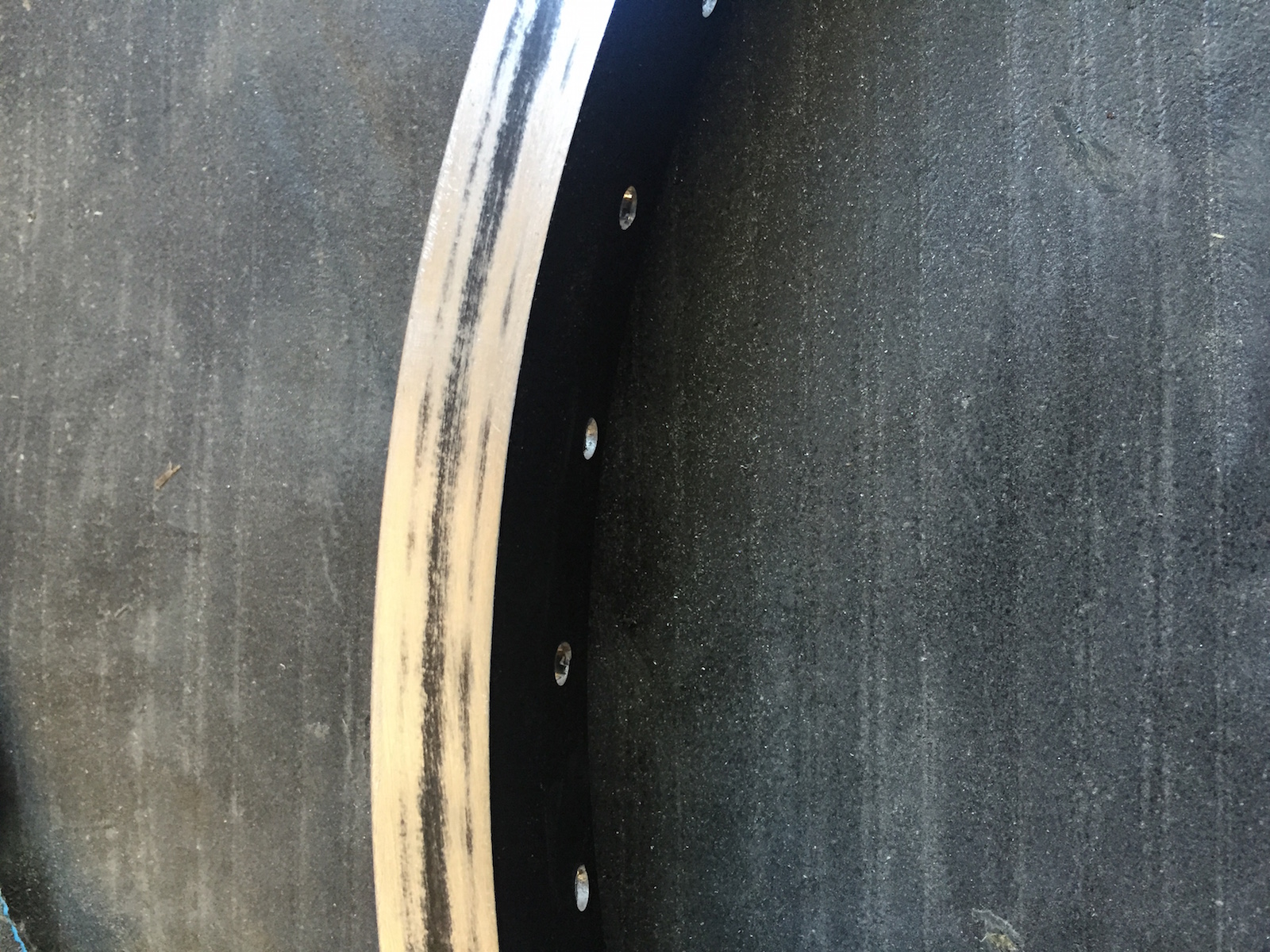

As mentioned above, the bike originally came with a set of steel 48h rims in black with shiny-sides. I wanted to keep the look but the rims themselves were quite rusty and not worth saving. I bought a set of Weinmann allow rims that although new have an old school look about them. They were all black, so I shiny- sided them following the procedure I previously document when building my 5-Hole SuperMax.

Once completed, I laced the rims using the instructions on the SuperMax link. However to ensure the spokes covered the previous lace marks in the hubs, I reversed the lacing and made them a mirror image of previous ones I have done.
